| ST |
|
- Steam spotting table
- Board (615x260x175 mm) out of stainless steel AISI 304
- Built-in vacuum unit (single phase)
- Complete with steam-air gun and swinging arm with suction and
- spotting shape out of stainless steel AISI 304
- Three pedals controlling steam, hot air, and vacuum
- Recovery tank fro liquids
|
|
| Options: |
|
- Cold spotting gun with receptacle for liquids and support
- Water spray gun with or without support
|
|
| Model |
Board
dimensions
(mm) |
Vacuum
motor
(hp) |
Air working
pressure
(bar) |
Air consumption
ni /min |
Steam
consumption
kg/ hr |
Steam
working
pressure
(bar) |
Overall
dimensions
(mm) |
| ST |
615 x 260
x 175 |
0.5 |
6 |
200 |
3 |
|
615 x 400 x 1900 |
|
|
|
 |
|
|
|
| STC |
|

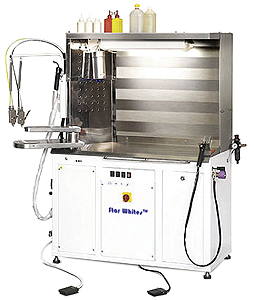

- Ecological pre- and post-spotting cabin
- Working surface, extractor hood and spotting arms put of stainless steel
- Built-in three phase vacuum unit and hood complete with filter.
- Built-in ecological filter.
- Internal lighting
|
|
| Spotting devices on request : |
|
- Cold spotting device featuring two cold spotting guns with
- corresponding receptacles and one air gun.
- Pre spotting device consisting of: soap brush and corresponding receptacle
- Steam spotting device composed of one steam-air gun, condensation separator and two adjustable solenoid valves
- Additional ultraviolet lamp
|
|
| Advantages |
|
- Versatile: thanks to three different spotting options.
- Ecological: thanks to the activated charcoal filter and spotting liquids recovery
- Functional: two differently sized stainless steel spotting arms with suction (one large and one small).
- Steam spotting device composed of one steam-air gun, condensation separator and two adjustable solenoid valves
- Powerful: very strong suction
|
|
| Model |
Air working pressure (bar) |
Vacuum motor (hp) |
Air consumption ni /min |
Steam consumption kg/ hr |
Overall dimensions (mm) |
Net Weight(kg) |
| STS |
6 |
0.7 |
40 |
3 |
1420x1750x600 |
165 |
|
|
|
 |
|
|
|
| STC |
|
| Steam spotting table with spotting board out of stainless steel AISI 304
The standard version is supplied with one steam gun, swinging arm with suction, and spotting shape out of stainless steel AISI 304, liquid recovery tank, and three pedals controlling steam, hot air and vacuum. |
|
- Steam spotting table
- Board (615x260x175 mm) out of stainless steel AISI 304
- Built-in vacuum unit (single phase)
- Complete with steam-air gun and swinging arm with suction and
- spotting shape out of stainless steel AISI 304
- Three pedals controlling steam, hot air, and vacuum
- Recovery tank fro liquids
|
|
| Options: |
|
- Built-in compressor (three-phase motor)
- Built-in vacuum unit (single-phase motor)
- Cold spotting assembly composed of air gun, receptacle for liquids and hose support
- Water spray gun with or without support.
- Pneumatic valve for central vacuum connection
|
|
|
|
 |
| Model |
Board Dimensions (mm) |
Vacuummotor
(hp) |
Compressor
( hp ) |
Air working pressure (bar) |
Air consumption
ni /min |
Steam
working pressure
(bar) |
Steam consumption (kg/hr) |
Overall dimensions (mm) |
Net Weight(kg) |
| STC |
800x260
x170 |
0.5 |
2 |
6 |
150 |
5 |
5 |
1270x
900x
1015/
1900h |
118 |
|
|
|
|
|
|
 |
