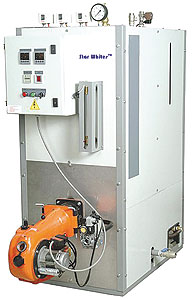

| SHELL TYPE |
|
| Premium design of diesel boiler with efficiency of over 95% composed of steel boiler body with heat exchanging fins. Space saving, latest international design, shell n shell technology, 03 shells one over the other, safety guaranteed, vertical shell – high efficiency and completely dry steam, 20% more economical as compared to shell n tube technology. |
|
| Model |
Capacity(kg/hr) |
Efficiency (%) |
Pump (hp) |
Chimney (dia) |
Dimensions ( lxdxh) mm |
Net Weight (kg) |
| DBS-50 |
50 |
95 |
1.0 |
120 |
740x1470x1200 |
220 |
| DBS-100 |
100 |
95 |
1.0 |
160 |
740x1470x1500 |
350 |
| DBS-150 |
150 |
95 |
1.0 |
160 |
740x1470x2000 |
500 |
|
|
|
 |
|
|
|
| COIL TYPE |
|
| The perfect solution for steam generation the present scenario of power shortage. The non-ibr boiler is totally protected with rested fittings and tested safety devices. The entire assembly is mounted on a single base plate compactness, portability and aesthetic appearance. The steam production is automatic. |
|
| Technical Details |
|
|
|
|
|
| Capacity (kg) |
100 |
200 |
400 |
600 |
800 |
| Steam out put ( kg/hr) |
100 |
200 |
400 |
600 |
800 |
| Working Pressure (kg/cm2 ) |
10.54 |
10.54 |
10.54 |
10.54 |
10.54 |
| Design Pressure ( kg/cm2 ) |
17.5 |
17.5 |
17.5 |
17.5 |
17.5 |
| Test pressure ( kg/cm2 ) |
26.25 |
26.25 |
26.25 |
26.25 |
26.25 |
| Efficiency % |
|
|
|
|
|
| Electric load |
90+ 2 |
90+ 2 |
90+ 2 |
90+ 2 |
90+ 2 |
| Blower motor (hp/kw) |
0.25/0.187 |
0.5/0.37 |
1.0/0.75 |
2.0/1.5 |
.03/2.2 |
| Water pump motor ( hp/kw) |
0.5/0.37 |
0.5/0.37 |
0.5/0.37 |
1.0/0.75 |
1.0/0.75 |
| Fuel pump motor ( hp/kw) |
- |
- |
0.5/0.37 |
0.5/0.37 |
0.5/0.37 |
| Fuel pre heater (kw) |
- |
- |
2.0 |
3.0 |
4.5 |
| Fuel consumption |
|
|
|
|
|
| Ldo ( kg/hr) |
6 |
12 |
24 |
36 |
47 |
| Fo (kg/hr) |
- |
- |
25 |
37 |
50 |
| Burner control |
On/off |
On/off |
On/off |
On/off |
On/off |
| Electric supply |
Ac 3 phase 415v+6% 50hz+ 3%;4 wire |
Ac 3 phase 415v+6% 50hz+ 3%;4 wire |
Ac 3 phase 415v+6% 50hz+ 3%;4 wire |
Ac 3 phase 415v+6% 50hz+ 3%;4 wire |
Ac 3 phase 415v+6% 50hz+ 3%;4 wire |
| Total Connected load |
|
|
|
|
|
| Ldo unit (kw) |
0.56 |
0.75 |
1.5 |
2.7 |
3.5 |
| Ldo unit (kw) |
- |
- |
3.5 |
5.7 |
8.0 |
| Over all length (m) |
1.3 |
1.4 |
1.5 |
1.6 |
2.0 |
| Over all length (m) |
1.0 |
1.2 |
1.5 |
1.7 |
1.9 |
| Over all length (m) |
1.2 |
1.5 |
1.8 |
2.2 |
2.6 |
| Dry weight (kg) |
700 |
900 |
1200 |
1600 |
2000 |
|
|
|
|
|
|
|
|
|
|
|
|
 |
