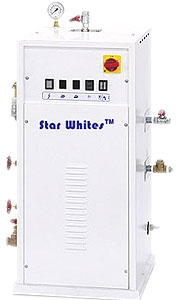

| PORTABLE BOILER |
|
- Automatic and electric steam generator
- Automatic water feeding by means of a water pump
- Automatic water level control
- Two safety devices fitted onto the boiler: pressure switch and safety
|
|
| Swinging arm with suction and heated sleeve shape |
|
| Model |
Boiler Capacity (ltrs) |
Power (kw) |
Max Steam output (kg) |
Operating Pressure(bar) |
Steam connection |
Suitable for (No of ironers) |
Net Weight ( kg) |
| jumbo |
6 |
2 |
4 |
4 |
1 |
1 |
20 |
| Maxi 18 |
18 |
6-9 |
18 |
5 |
1 |
2-3 |
32 |
| Maxi 24 |
24 |
12-18 |
24 |
5 |
1 |
4-8 |
48 |
|
|
|
 |
|
|
|
|

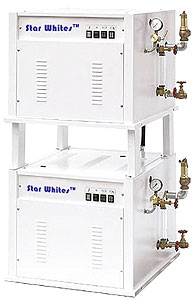

| MAXI II |
|
| Two electric and automatic steam generators type Maxi II fitted one above the other, featuring two separate electrical systems, two water pumps and one or two steam outlets. |
|
| Options: |
|
| Stainless steel condensation recovery and water feeding
tank (160 l.). |
|
| Model |
Boiler Capacity (ltrs) |
Power kw |
Max Steam output (kg) |
Steam connections |
Net Weight (KG) |
Net Weight (KG) |
| Maxi II |
50+50 |
30+30 |
100 |
5 |
2 |
230 |
|
|
|
 |
|
|
|
|

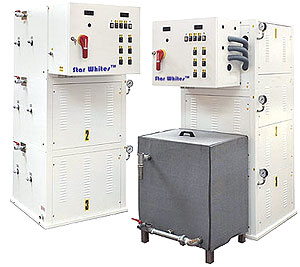

| MAXI III |
|
Three electric and automatic steam generators fitted one above the other inside one single body, featuring each a 50 litres capacity boiler from 90kw. An external power board controls the six separate boiler heaters, thus enabling an independent or combined operation. Available with one or three steam outlets. The water feeding can be connected directly to the water mains or to a condensation recovery tank.
On request, the boiler body can be supplied in stainless steel AISI 304. The standard steam working pressure is of 5 bar, but on request the boiler is also available with a 7 bar working pressure. |
|
| Stainless steel condensation recovery and water feeding
tank (160 l.). |
|
| Options: |
|
| Model |
Boiler Capacity (ltrs) |
Power kw |
Max Steam output (kg) |
Steam connections |
Net Weight (KG) |
Net Weight (KG) |
| Maxi III |
50+50+50 |
30+30+30 |
150 |
5 or 7 |
3 |
315 |
|
|
|
 |
|
|
|
|
|
 |
